Oval gear flow meter 6210P for corrosive and viscous liquids

Oval gear flow meter 6210P for corrosive and viscous liquids

The round-shaped positive displacement oval gear flow meter 6210P serves most industrial applications. It is a dependable flow meter especially designed for measuring and monitoring of corrosive and viscous liquids in demanding industrial environments.

Kytola’s oval gear flow meters always show the correct flow rate regardless of temperature or viscosity changes. They are an excellent choice for applications that require high resistance to chemicals combined with low loss of pressure.

The precise and highly accurate measuring is based on two toothed oval-shaped gears that are rotated by the flow. Each oval gear rotation generates two pulses and each rotation measures a constant volume of oil. A coil sensor or an inductive proximity sensor picks up the rotation. The pulse signal can be transferred to indicators, counters, or automation systems.

Kytola’s oval gear flow meters have sturdy construction and they are made to last. The model 6210P is made with durable shock-resistant and wear-proof plastic components. The transparent cover makes it easy to visually monitor the flow meter on the run.

6210P is a cost-efficient and long-term solution for a variety of industrial applications such as

• chemical dosing
• industrial flow monitoring
• process control

Main technical features of the Kytola 6210P oval gear flow meter are:

• several flow ranges
• transparent cover
• independent of viscosity and temperature changes
• chemical resistant materials
• pulse output
• ATEX version (II 2GD c TX) as option

Technical data

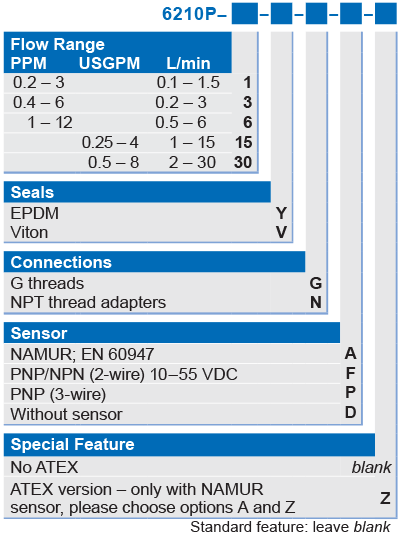

Product key

Datasheet

Download datasheet Model 6210P (548.66 KB pdf)
