Multi-tube flow meter model ExK

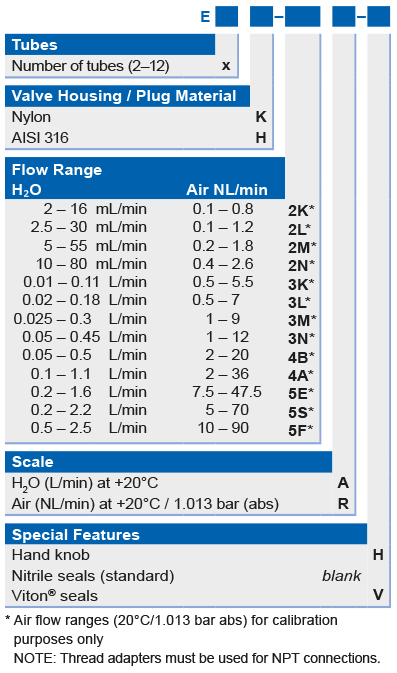

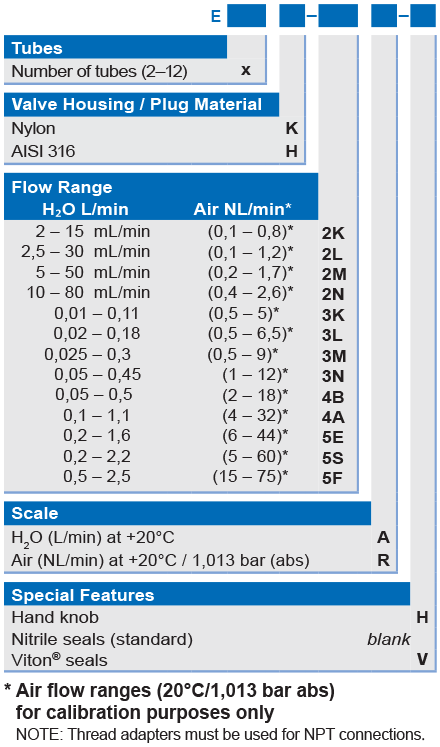

Flow range H2O, 20°C:
min 2 – 16 mL/min
max 0.5 – 2.5 L/min

Flow range air, 1.013 bar(a), 20°C:
min 0.1 – 0.8 NL/min
max 10 – 90 NL/min

Typical applications:
water and air purging
gas and liquid measurements
CO₂ control in greenhouses

Ask more about this product

Watch video Download datasheet Model ExK (496.47 KB pdf)

Kytola plastic tube variable area flow meter model ExK with up to 12 flow tubes

Kytola plastic tube variable area flow meter model ExK with up to 12 flow tubes

The acrylic variable area flow meter ExK is especially suited for oxygen flow measurement. The flow meter is available with 2 -to 12 flow tubes.

The acrylic variable area flow meter multi-tube block ExK has clear indication of current flow. It monitors and measures liquid and gas flows with uttermost accuracy and precision. The flow meter is durable and performs well in industrial environments.

The finess of the flow meter lies in the skillfully manufactured components which ensure its accuracy and reliable operation in industrial applications. The body is made in one piece of precision-machined acrylic which prevents leaks as no attachments are required.

Special emphasis has been put into its user friendliness. The flow rate is easily read at a glance as the scales are clear. The flow meter unit is rapid to assemble and disassemble whenever maintenance is needed.

Variable area flow meter Model ExK is a high quality acrylic multi-tube flow meter. Model ExK is equipped with flow adjustment valves on the outlet and is also available in customized designs.
