Oval gear
flow meter
model 2950
for oil

Oil flow meter with oval gears, model 2950

Positive displacement oval gear flow meter 2950 serves most industrial applications where oil is used as media. It is a dependable flow meter especially designed for lubrication oil flow measurement in demanding industrial environments.

Kytola’s oil flow meter 2950 is a positive displacement oval gear flow meter. It’s especially designed for lubrication oil flow measurement in demanding industrial environments.

Kytola’s oval gear flow meters always show the correct flow rate regardless of temperature or viscosity changes. They are an excellent choice for applications that require high resistance to chemicals combined with low loss of pressure.

The precise and highly accurate measuring is based on two toothed oval-shaped gears that are rotated by the flow. Each oval gear rotation generates two pulses and each rotation measures a constant volume of oil. A coil sensor or an inductive proximity sensor picks up the rotation. The pulse signal can be transferred to indicators, counters, or automation systems. The 2950 comes without flow adjustment valve.

Kytola’s oval gear flow meters have sturdy construction and they are made to last. The model 2950 is made with durable shock-resistant and wear-proof plastic and aluminium components. The transparent cover makes it easy to visually monitor the flow meter on the run.

2950 is a cost-efficient and long-term solution for a variety of industrial applications such as

• lubrication oil flow measurement
• industrial oil flow monitoring
• process control

Main technical features of the Kytola 2950 oval gear flow meter:

• several flow ranges
• large viscosity range 30 – 1000 cSt
• without flow adjustment valve
• transparent cover provides highly visible oil flow indication
• independent of viscosity changes
• sturdy construction
• pulse output

Technical data

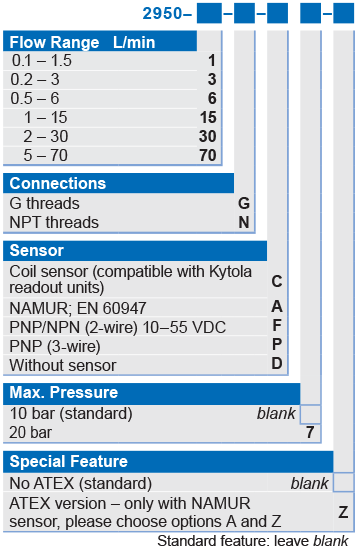

Product key

Datasheet

Download datasheet Model 2950 (550.68 KB pdf)
